Introduction

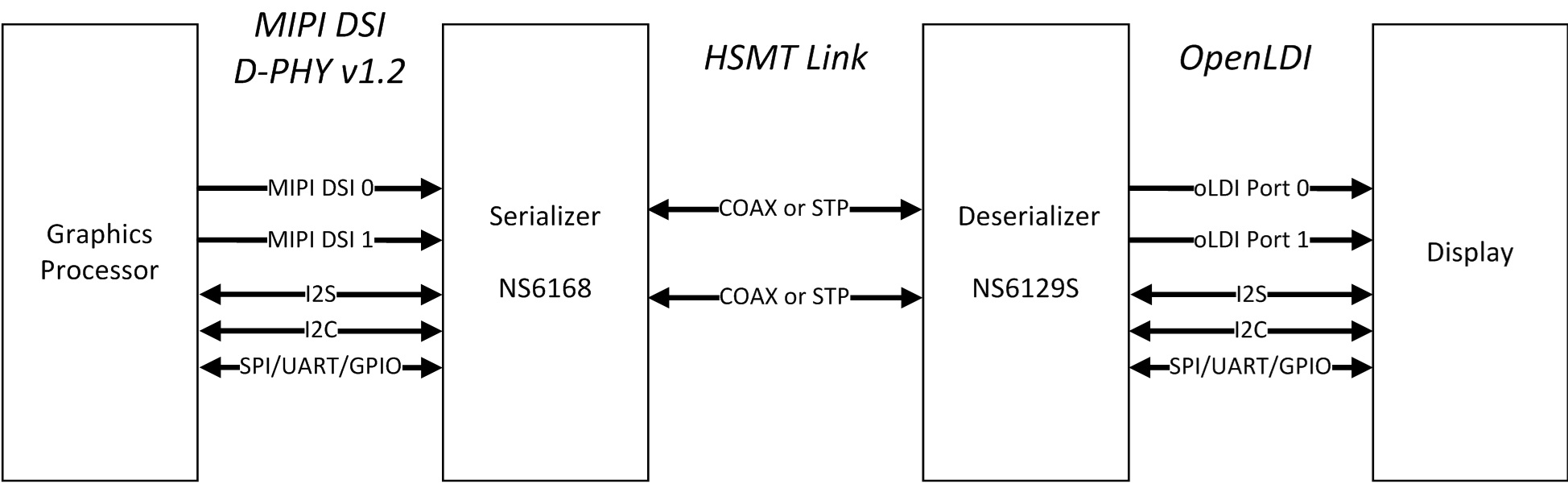

The NS6129S deserializer chip is compliant to Automotive Wired High-Speed Media Transmission (HSMT) standard. Pairing with a compatible HSMT serializer. the NS6129S is used for transmission of forward video and bidirectional audio and control data for automotive display applications.

The NS6129S receives the HSMT input over a single or dual HSMT links and converts the input to OpenLDI formatted output. Each HSMT link operates at a fixed data rate up to 12.8Gbps in the forward direction and 100Mbps in the backward direction. The NS6129S supports 15m Coaxial cable or 8m Shielded Twisted Pair (STP) cable . The NS6129S is AEC-Q100 Grade 2 certified with automotive temperature range of -40°C to +105°C, and meets ISO 10605 and IEC 61000-4-2 ESD requirements.

Applications

    ·           High-resolution Automotive Navigation System

    ·           Central Information Display (CID)

    ·           Digital Instrument Clusters

    ·           Rear Seat Entertainment (RSE)

    ·           Head Units and HMI Modules

    ·           Rear View and Side Mirror Displays

Features

·         Single-oLDI or dual-oLDI output ports

·         Configurable 18/24/30-bit RGB

·         Maximum pixel clock 210MHz (single-oLDI) or 420MHz (dual-oLDI)

·         Supports video aggregation

·         HSMT links for system and power flexibility

·         Supports two HSMT links

·         2.0, 3.2, 4.0, or 6.4Gbps forward-link rates (NRZ)

·         12.8Gbps forward-link rate in PAM4 mode per link

·         100Mbps backward-link rate per link

·         Robust communication in automotive environment

·         Forward channel adaptive equalization

·         RS-FEC for protection of forward video and bidirectional control data

·         Retransmission

·         Advanced DSP continuously tracking changes in cable, connector, PCB and other channel characteristics over time and temperature

·         Digital audio with I2S and TDM interface

·         Supports forward-direction 8-channel PCM or  7.1 HD audio and up to 192kHz sample rate

·         Supports backward-direction 2-channel mode and up to 192kHz sample rate

·         Supports bulk and tunneling modes I2C (master up to 833Kbps, slave up to 1Mbps)

·         Supports SPI (master/slave up to 50Mbps), UART (Tx/Rx), GPIO, and interrupt for touch-screen and other use cases

·         Supports data transfers I2C<->I2C, I2C<->SPI, UART<->UART, I2C->UART TX, SPI->UART TX

·         Functional safety

·         AEC Q100 Grade-2 and ISO 26262 ASIL-B

·         CRC protection of control-channel data (I2C and SPI)

·          Video data error correction and retransmission

·         Supports OSD (On-Screen Display)

·         Supports color space conversion

·         Supports gamma correction

·         Supports image enhancement features

·         Video watermark insertion and detection

·         Video test pattern generation

·         Advanced diagnostics

       ·          Line fault detection

       ·          Supply voltage monitor

·         Programmble spread spectrum for EMI reduction

·         9mm x 9mm 76-pin QFN package
