Introduction

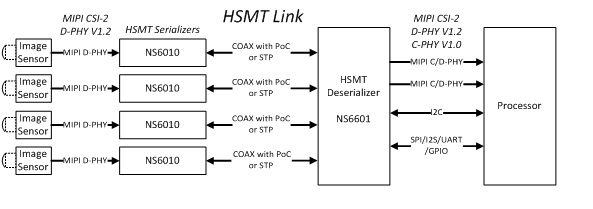

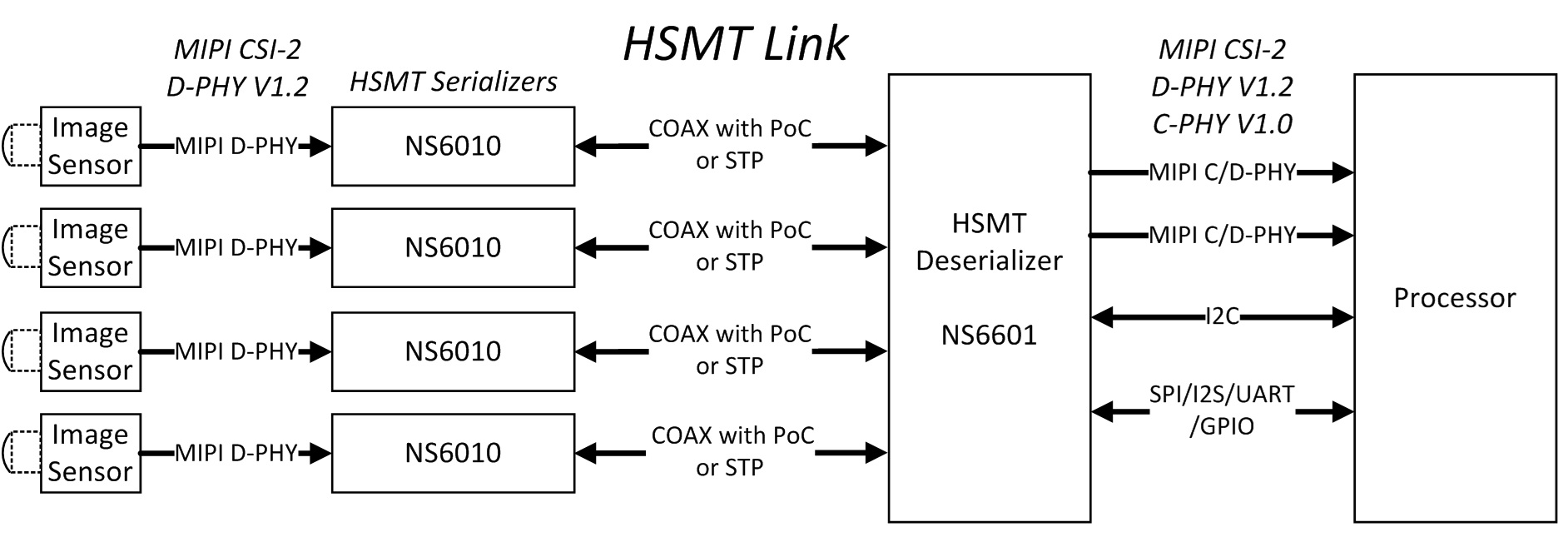

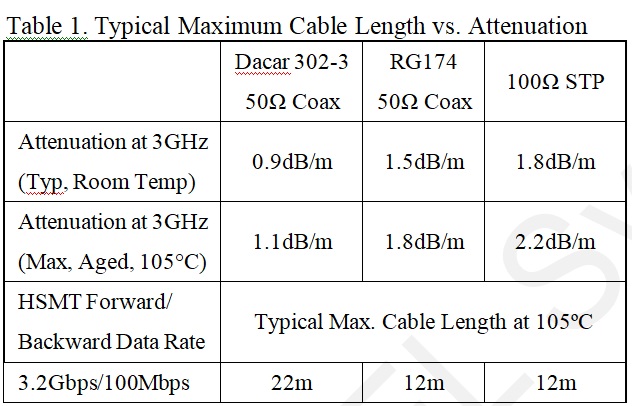

The NS6601 Deserializer chip is compliant to Automotive Wired High-Speed Media Transmission (HSMT) standard. The NS6601 converts HSMT input to MIPI CSI-2   D-PHY or C-PHY formatted output. The NS6601 is a quad-receiving chip to accommodate as many as 4 remotely located sensors. HSMT link operates at a fixed data rate of 3.2Gbps or 2.0Gbps in the forward direction, and 100Mbps in the backward direction. The NS6601  supports Power-over-Cable(PoC)operation over 22 meters Coaxial cable or 12 meters Shielded Twisted Pair (STP) cable, with multiple inline connectors. The NS6601 is ISO 26262 ASIL-B and AEC-Q100 Grade 2 certified with automotive temperature range of -40°C to +105°C.

Applications

·           High-Definition 5MP Camera Systems

·           Advanced Driver Assistance Systems (ADAS)

·           Front Vision Camera Systems (FVC)

·           Surround View Systems (SVS)

·           Driver Monitor Systems (DMS)

·           Automatic Parking Assist (APA)

Features

·           Multiple data rates for system and power flexibility

·           2.0 or 3.2Gbps forward-link rates

·           100Mbps backward link rate to allows small Power-over-Cable inductor

·           Robust communication in automotive environment

·           Forward channel adaptive equalization

·           RS-FEC for protection of forward video and control-channel data

·           Retransmission

·           Advanced DSP continuously tracking changes in cable, connector, PCB and other channel characteristics over time and temperature

·           MIPI CSI-2 output configurable as D-PHY and/or C-PHY

·           RAW8/10/12/14/16/20/24, RGB888, YUV422 8/10-bit

·           D-PHY V1.2 up to 2.5Gbps/lane, 2x4-lane, 1x4-lane + 2x2-lane, 4x2-lane

·           C-PHY V1.0 up to 5.7Gbps/trio, 2x4-trio, 1x4-trio + 2x2-trio, 4x2-trio

·           16-channel virtual channel support (D-PHY)

·           32-channel virtual channel support (C-PHY)

·           Supports aggregation and replication of    video data

·           Supports superframe with frame concatenation

·           Functional safety

·           ISO 26262 ASIL-B certified

·           CRC protection of control-channel data (I2C, SPI)

·           Video data error correction and retransmission

·           Video watermark insertion and detection

·           Line fault detection

·           Supports 2x I2C, 2x SPI, 15x GPIO, 4x UART, 2x I2S

·           9mm x 9mm QFN package
