Introduction

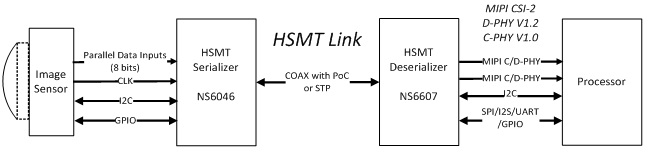

The NS6046 Serializer chip is compliant to Automotive Wired High-Speed Media Transmission (HSMT) standard. The NS6046 converts an 8-bit parallel data input to a single HSMT serial output for transmission of video and bi-directional control data. The HSMT link operates at a fixed data rate of 2.0Gbps in the forward direction, and 100Mbps in the backward direction. The NS6046 supports Power-over-Cable (PoC) operation over 22 meters Coaxial cable or 12 meters Shielded Twisted Pair (STP) cable, with multiple inline connectors. The NS6046 is ISO 26262 ASIL-B and AEC-Q100 Grade 2 certified with automotive temperature range of -40°C to +105°C.

The NS6046 includes ISO 26262 ASIL-B certified I2C and SPI control ports, flexible GPIO with trigger mode, constant latency mode and oversample mode, tunneled UART, forward and backward audio channels, a built-in ADC, temperature sensor, and an extensive set of diagnostics for functional safety.

Applications

·         High-Definition 3MP Camera Systems

·         Advanced Driver Assistance Systems (ADAS)

·         Front Vision Camera Systems (FVC)

·         Surround View Systems (SVS)

·         Driver Monitor Systems (DMS)

·         Automatic Parking Assist (APA)

Features

·         Full duplex over a single wire

·         2.0Gbps forward-link rate

·         100Mbps backward link rate to allow small Power-over-Cable inductor

·         Robust communication in automotive environment

·         RS-FEC for protection of forward video and control-channel data

·         Physical layer retransmission

·         High performance backward receiver

·         Backward channel adaptive equalization

·         Backward channel eye timing margin monitor for continuous link margin diagnosis

·         RS-FEC for protection of backward control-channel data

·         Parallel data inputs for megapixel cameras

·         Supports 8-bit payload data

·         Supports 25–210MHz SDR pixel clock

·         Supports bulk and tunneling modes I2C (master up to 833Kbps, slave up to 1Mbps)

·         Supports 2x I2C, 2x SPI, 9x GPIO, 2x UART, 2x I2S

·         Functional safety

·         ISO 26262 ASIL-B certified

·          CRC protection of control-channel (I2C, SPI)

·          Video data error correction and retransmission

·         Video watermark insertion and detection

·         Video test pattern generation

·         Advanced diagnostics

·         Line fault detection

·         Supply voltage monitor

·         Generates reference clock for image sensor synchronizing to back channel clock

·         Generates frame sync singal to image sensor

·         Programmable spread spectrum for EMI reduction

·         5mm x 5mm QFN package
