NS6607 Quad 2.0G HSMT to CSI-2 Deserializer

  • 11(4).jpg

Introduction

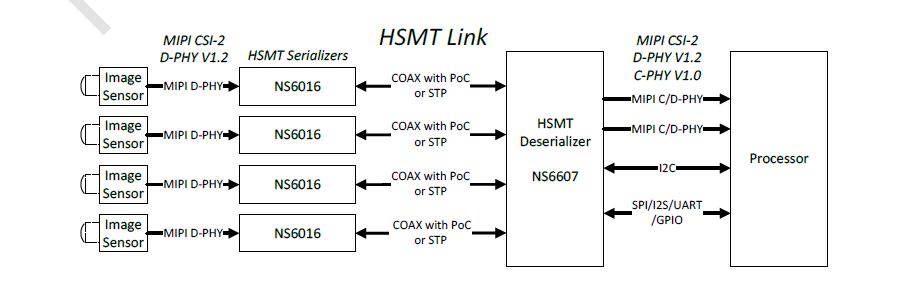

     The NS6607 Deserializer chip is compliant to Automotive Wired High-Speed Media Transmission (HSMT) standard.The NS6607 converts HSMT input to MIPI CSI-2 D-PHY or C-PHY formatted output. The NS6607 is a quad-receiving chip to accommodate as many as 4 remotely located sensors. HSMT link operates at a fixed data rate of 2.0Gbps in the forward direction, and 100Mbps in the backward direction. The NS6607 supports 22 meters Coaxial cable or 12 meters Shielded Twisted Pair (STP) cable, with multiple inline connectors. The NS6607 is ISO 26262 ASIL-B and AEC-Q100 Grade 2 certified with automotive temperature range of -40°C to +105°C.


Applications

  • High-Definition 3MP Camera Systems

  • Advanced Driver Assistance Systems (ADAS)

  • Front Vision Camera Systems (FVC)

  • Surround View Systems (SVS)

  • Driver Monitor Systems (DMS)

  • Automatic Parking Assist (APA)
